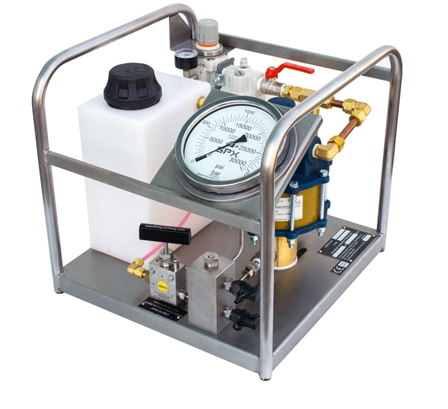

Bolt Tensioning Pumps

Product Description

Ergonomic Control Panel
Features a logically arranged, engraved layout to facilitate intuitive and efficient operation.
Precision-Calibrated Pressure Gauge
Equipped with a 150mm (6”) liquid-filled gauge, stainless steel casing, and dual-scale readings (bar and psi), rated up to 2500 bar for accurate pressure monitoring.
Integrated Air Management System
Includes a complete FRL (Filter, Regulator, Lubricator) unit, air pressure gauge, and control knob to ensure safe and reliable air supply regulation.
High-Pressure Capability
Delivers a maximum operating pressure of 1500 bar, suitable for a wide range of bolt tensioning applications.
Compact and Lightweight Design
Weighs only 22 kg with dimensions of 390mm x 390mm x 410mm, offering portability without compromising performance.
Optimized Air Input Efficiency
Utilizes a high-pressure ratio of 1:350, enabling operation with minimal input air pressure.
Quick-Connect Hydraulic Outlet
Fitted with a quick-connect coupling for seamless and secure attachment of hydraulic hoses.
